Dimensions (mounted horizontally to a wall)

  • 200mm long x 80mm high x 70mm wide
  • 7.9" long x 3.2" high x 2.8" wide



Power Supply

  • 12 Volt Dc 1 Amp switch mode plug



Video Quality

  • 720P High Definition


Field of View

  • 60 degrees

Cables supplied

  • 1.5m (60") cable attached to wall transformer (male 5.5mm x 2.1mm round plug at other end)
  • 1.5m (60") extension cable (male and female 5.5mm x 2.1mm round plugs)
  • 2m (79") flat CAT 6 ethernet cable

Ports

  • RJ45 network connection
  • Female 5.5mm x 2.1 round power connection
  • Reset button
  • External antenna connection (antenna supplied)

Power consumption

  • 12 Volt DC approximately 450mA

Infra Red wavelength

  • 850nM

WiFi connectivity

  • 2.4GHz (802.11 b/g/n)

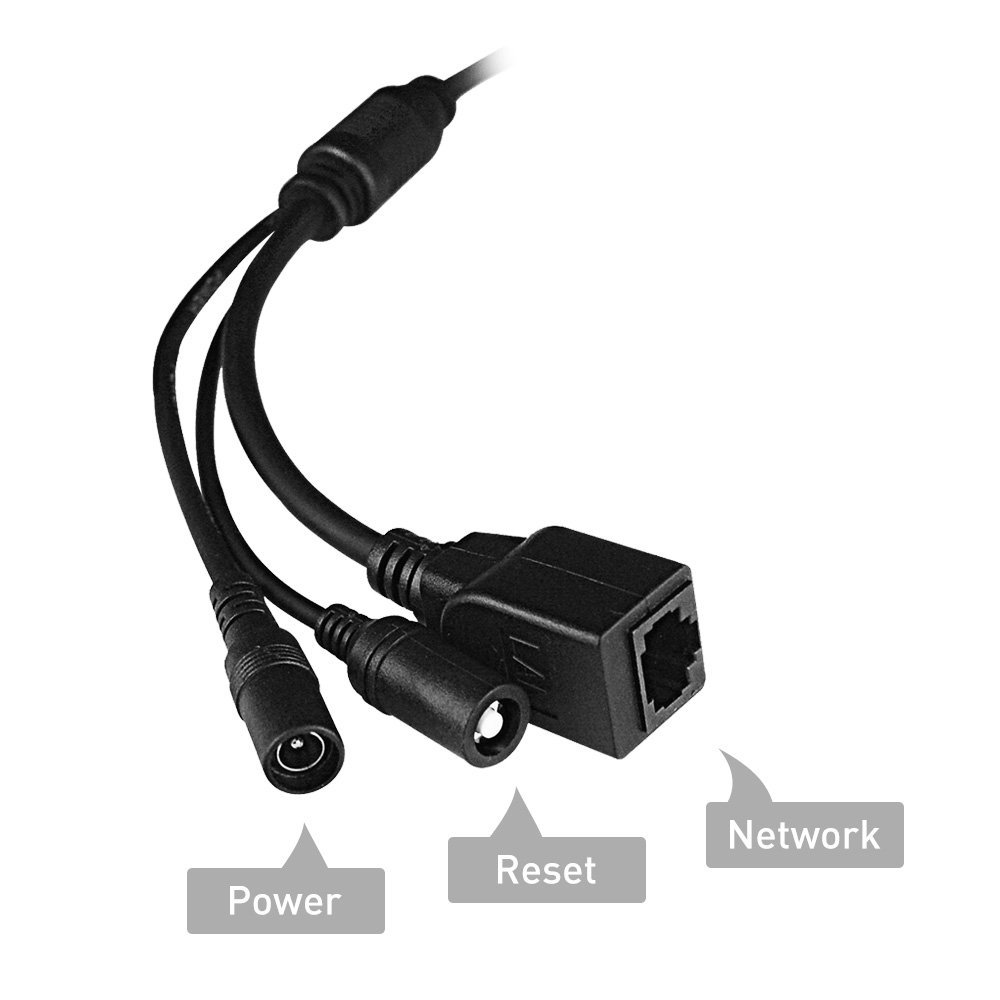

External connections on outdoor camera
outdoor camera connectors.jpg


Mounting options
  • The outdoor camera has an articulated connection, comprised of 2 swivelling and one hinged joint, between the camera and the mounting base. This allows the camera to be mounted to practically any surface, horizontal to vertical and any angle in-between and aimed in the required direction.
  • The app allows the image from a camera to be flipped, mirrored, or flipped and mirrored, which facilitates mounting the camera upside down if required. Mounting the camera upside down (i.e. with antenna pointing downwards) is often preferable when positioning the camera under a roof eave if the antenna would otherwise be under pressure from touching the eave.

Water and dust proof rating
  • The outdoor cameras are rated IP66, meaning they are dust tight, and protected against powerful water jets.

Suitable replacements for power supply
  • This product or similar would be a suitable replacement for an outdoor camera power supply if you misplace it. (note: you would need to find a model with the correct plug configuration for your country).
